High Speed VMC855 CNC Milling Machine 8000 RPM Belt Drive BT40 Taper 24 Tool ATC System for Metal Processing

MOQ : 1

table travel (x) (mm) : 1000x550

table travel (z) (mm) : 550mm

no. of spindles : Single

repeatability (x/y/z) (mm) : ±0.003/300

Price : $25,000

table travel (y) (mm) : 550mm

weight (t) : 5

min. time of tool change(s) : 8000rpm (ring spray)

max. table load(kg) : 600

Contact Now

VMC855 High-Speed CNC Milling Machine for Metal

The VMC855 Vertical Machining Center is a high-performance CNC milling machine designed for precision metalworking applications. Equipped with the latest Fanuc 0i-MF PLUS control system, this machine delivers exceptional accuracy and reliability for industrial manufacturing.

Key Features

X, Y, Z three-axis travel: 800×550×550mm
Belt-driven spindle with maximum speed of 8000 RPM (ring spray cooling)
24-position automatic tool changer for efficient operation
Heavy-duty box-type head structure with reinforced internal ribs for high rigidity
Pneumatic spindle punching mechanism for even stress distribution and extended bearing life
Isolated electrical box design with heat exchanger to prevent dust contamination
High-precision ball screws with pre-compression nuts and pre-tensioning for minimal backlash
Roller linear guides on all axes (6 sliders on Z-axis) for high rigidity and fast positioning
Comprehensive laser positioning correction and circular testing for optimal accuracy

Technical Specifications

Parameter	Unit	Specification
Work table dimension	mm	1000×550
X/Y/Z axis travels	mm	800/550/550
Distance from spindle end face to table	mm	120-670
Distance from spindle center to column	mm	590
Maximum load of table	Kg	600
Table T-slot	mm	5-18×90
X/Y/Z axis fast feed	m/min	36/36/36
X/Y/Z rail width	mm	RGH45/45/45 pin roller
Positional accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003/300
Minimum positioning unit	mm	±0.001
Maximum spindle speed	rpm	8000 (Ring spray)
Main spindle end taper	mm	BT40-150
Disk manipulator tool library	pcs	24T
Control System	/	Fanuc 0i-MF PLUS
X/Y/Z axis motor power		bis12/bis12/bis22B
Spindle motor power		BiL8 (7.5-11KW)
Weight	Kg	5000
Dimension	mm	2600×2400×2650

Standard Configuration

Control system: Fanuc 0i-MF PLUS latest system
Maximum spindle speed: 8000rpm (ring spray)
Spindle rotation mode: synchronous belt spindle
Spindle taper: BT40/150
Working range: 800×550×550mm
Taiwan 24 disk manipulator tool library
Fast moving speed: 48/48/48m/min
Complete accessory package including cooling system, lubrication system, cutting and blowing device, working lights, alarm system, and precision adjustment components
Advanced features including rigid tapping, accuracy inspection certificate, user manuals, and data transmission interface
Premium components including Schneider Electric systems and comprehensive chip management

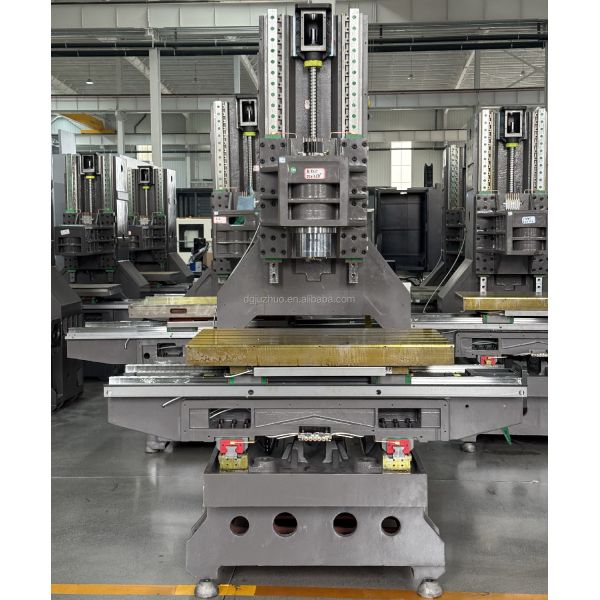

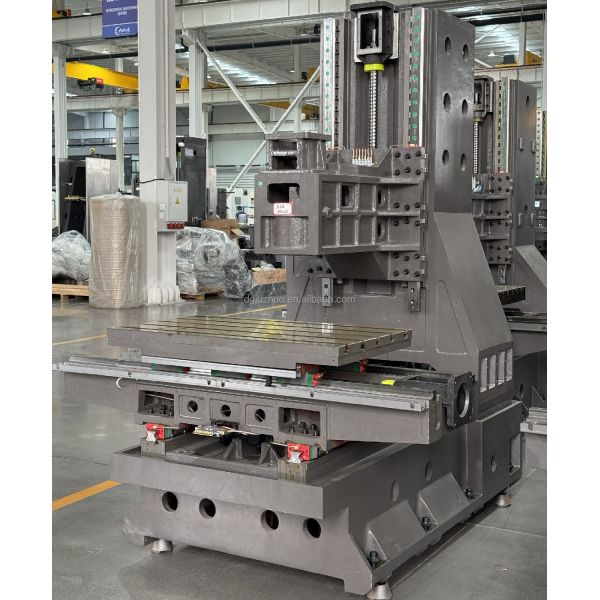

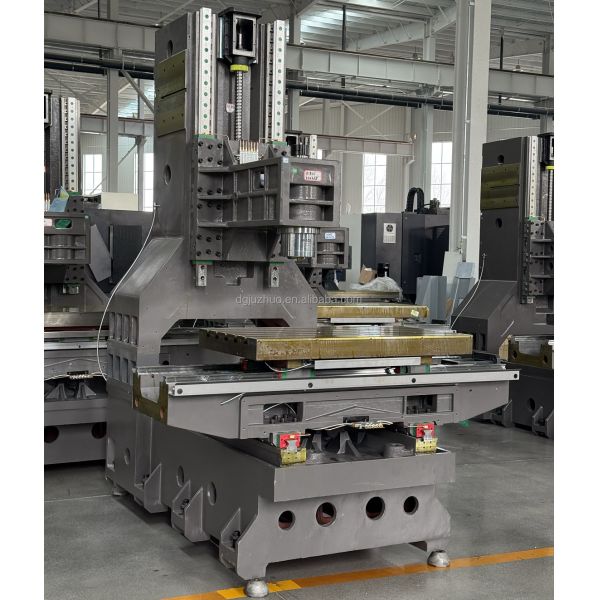

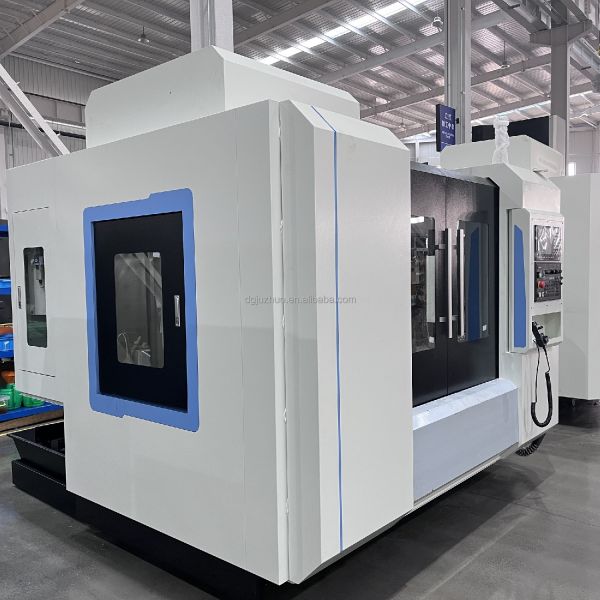

Product Images

High Speed VMC855 CNC Milling Machine 8000 RPM Belt Drive BT40 Taper 24 Tool ATC System for Metal Processing
